Farm Machinery Parts on the Mid North Coast
Huge Range, Quality Parts
At Wingham Farm Machinery, our farm machinery parts make for quick and easy installation, load securement, rigging, towing and more! We service clients throughout the Mid North Coast, from Taree, Gloucester, Comboyne, and Wauchope, over to Forster, Tuncurry, Nabiac and Bulahdelah.
We have a variety of parts available, including hydraulics and shackles. Do you need high tensile chains and fittings? We supply a diverse range, such as clevis grab hooks and ratchet type load binders. Our stock also contains plenty of special implement parts for your farm machinery.
We also offer hassle-free repairs and customised agricultural machinery. Our parts are 100% compliant with all industry standards, sourcing and supplying only from top Australian manufacturers.
Pick up and delivery available across the region. Come by our Wingham store
to purchase Australian-made machinery parts in Taree, or call
(02) 6553 5729
for any enquiries.
High Tensile Chains & Fittings
Clevis Claws:
- 8-10mm
- 6-8mm
- Not to be used for lifting

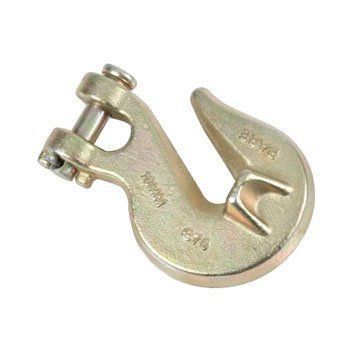

Clevis Grab Hooks:
- 6mm
- 8mm
- 10mm
- 13mm
HIGH TENSILE TRANSPORT FITTINGS: Clevis Lug Links
- 8mm
- 10mm
- 13mm
- Not to be used for lifting

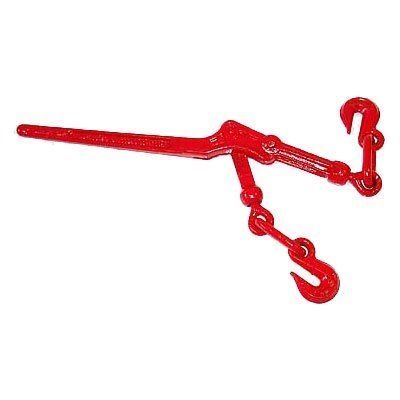

Drop Forged with Chain Hooks:
- NOTE: Parts shown are BARE-Co parts – original part numbers are shown for reference only
- Not to be used for lifting
- Suits 6mm Chain
AUST. STD. LASHING CAPACITY= 1,700Kg* - Suits 8mm / 10mm Chain
AUST. STD. LASHING CAPACITY= 4,500Kg* - *LASHING CAPACITY IS MAXIMUM FORCE FOR USE IN A STRAIGHT PULL THAT COMPONENT IS DESIGNED TO SUSTAIN IN USE

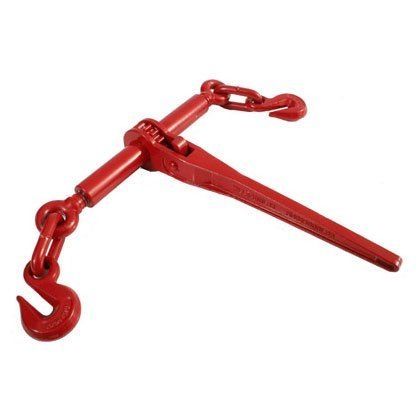

Ratchet Type Load Binder:
- NOTE: Parts shown are BARE-Co parts – original part numbers are shown for reference only
- Not to be used for lifting
- Suits 8mm/10mm Chain
- AUST. STD. LASHING CAPACITY= 4,500Kg*
- LASHING CAPACITY IS MAXIMUM FORCE FOR USE IN A STRAIGHT PULL THAT COMPONENT IS DESIGNED TO SUSTAIN IN USE
Wing Type Clevis Grab Hooks
Shackles

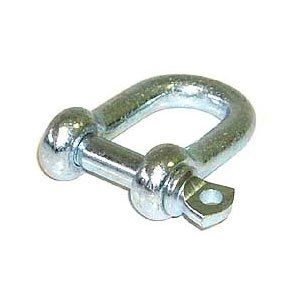

- Commercial “D” Shackles – Zinc Plated:
- NOT TO BE USED FOR LIFTING
Shackles – Sizes
| Size | |
|---|---|
| 6mm | (1/4”) |
| 8mm | (5/16”) |
| 10mm | (5/16”) |
| 12mm | (1/2”) |
| 16mm | (5/8”) |
| 19mm | (3/4”) |
| 25mm | (1”) |

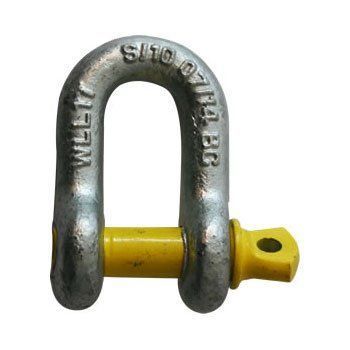

Forged Heavy Duty “D” Shackles – Heat Treated Pin:
- WLL RATED to AS2741 Standard for LIFTING WLL= Work Load Limit
Forged Heavy Duty “D” Shackles – Heat Treated Pin – Sizes
| Bow Size | Pin Size | WLL (Work Load Limit) | ||
|---|---|---|---|---|
| 10mm | 3/8” | 11mm | 7/16” | 1.0 tonne |
| 13mm | ½” | 16mm | 5/8” | 2.0 tonne |
| 5/8” | 19mm | ¾” | 3.25 tonne |

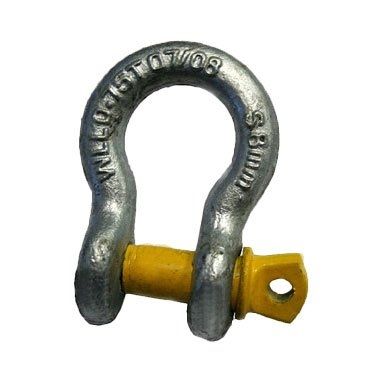

Forged Heavy Duty Bow Shackles – Heat Treated Pin:
- WLL RATED to AS2741 Standard for LIFTING WLL= Work Load Limit
Forged Heavy Duty Bow Shackles – Heat Treated Pin – Sizes
| Bow Size | Pin Size | WLL (Work Load Limit) | ||
|---|---|---|---|---|
| 8mm | 5/16" | 9.5mm | 3/8” | 0.75 tonne |
| 10mm | 3/8" | 11mm | 7/16” | 1.0 tonne |
| 11mm | 7/16" | 13mm | ½” | 1.5 tonne |
| 13mm | ½” | 16mm | 5/8” | 2.0 tonne |
| 16mm | 5/8” | 19mm | ¾” | 3.25 tonne |
| 19mm | ¾” | 22mm | 7/8” | 4.75 tonne |
| 25mm | 1” | 28.6mm | 1 1/8” | 8/5 tonne |
Special Implement Parts

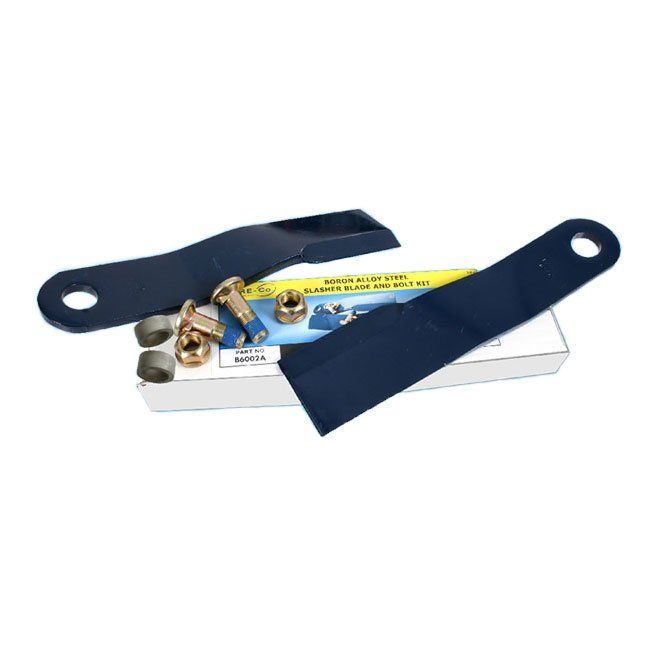

Boxed Sets of Slasher Blades, Bolts & Bushes
Boxed Sets of Slasher Blades, Bolts & Bushes – Sizes
TABLE
| Part No. | Contents | Application |
|---|---|---|
| B6000A | 2 x B6000 blade | Various including Jarrett |
| B6000A | 2 x B6786 bolt/bush kit | Various including Jarrett |
| B6002A | 2 x B6002 blade | Howard with NIB bolt |
| B6002A | 2 x B6467 bolt/bush set | Replaces 78663KN |
| B6002B | 2 x B6002 blade | Howard with C/Sunk bolt |
| B6002B | 2 x B8466 bolt/bush set | Howard with C/Sunk bolt |
| B6002C | 2 x B6002 blade | Howard with Hex bolt |
| B6002C | 2 x B6787 bolt/bush set | Howard with Hex bolt |
| B6001B | 2 x B6001 blade | Howard with C/Sunk bolt |
| B6001B | 2 x B8466 bolt/bush set | Howard with C/Sunk bolt |
| B6001C | 2 x B6001 blade | Howard with Hex bolt |
| B6001C | 2 x B6787 bolt/bush set | Howard with Hex bolt |
| B50B | 2 x B50 blade | Howard with C/Sunk bolt |
| B50B | 2 x B8466 bolt/bush set | Howard with C/Sunk bolt |
| B50C | 2 x B50 blade | Howard with Hex bolt |
| B50C | 2 x B6787 bolt/bush set | Howard with Hex bolt |

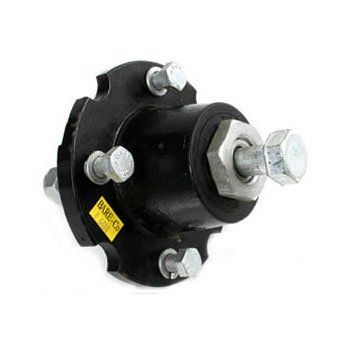

Cast Hub Assembly:
CAST HUB/BRGS=RUBBER WHEELS Ø 1″ AXLE
- Adjustable Tapered Roller Bearings
- 1″ diameter Axle Bolt included for Fork Mounting
- Removing fork adjuster sleeve provides 1 3/8″ bearing ID for stub axle mounting
- Fits B6439, B6421, B6440 Wheels

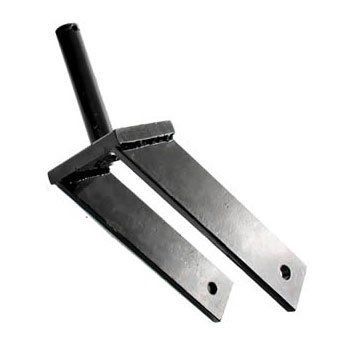

Fork for Wheel Assembly:
| Wheel Assembly | Specs |
|---|---|
| Fork for B6438 Wheel Assembly | 1″ diameter Axle Bolt Hole 1 1/2" (38mm) Pivot Shaft |
| Fork for B6420 and B6440 Wheel Assembly | 1″ diameter Axle Bolt Hole 1 1/2" (38mm) Pivot Shaft |

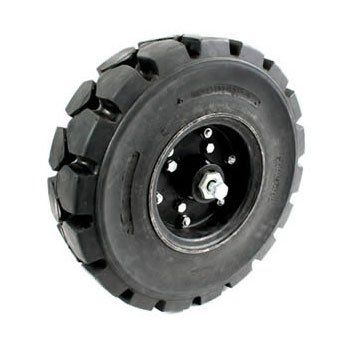

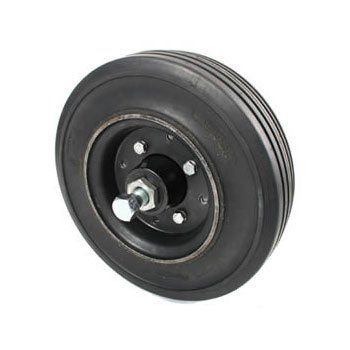

Heavy Duty Solid Cushion Tyre – Wheel and Hub Assembly:
- 600 × 9″ SOLD CUSHION TYRE/WHEEL & HUB
- Adjustable Tapered Roller Bearings
- 1″ diameter Axle Bolt included for Fork Mounting
- Removing fork adjuster sleeve provides 1 3/8″ bearing ID for stub axle mounting
- 6.00 x 9″ Tyre
- 21″ OD x 6” wide
- (533mm x 150mm wide)
- 1/2″ (12mm) thickness wheel
Heavy Duty Solid Cushion Tyre – Wheel and Hub Assembly
- 400 x 8 SOLID CUSHION TYRE/WHEEL & HUB
- Adjustable Tapered Roller Bearings
- 1″ diameter Axle Bolt included for Fork Mounting
- Removing fork adjuster sleeve provides 1 3/8″ bearing ID for stub axle mounting
- 4.00 x 8″ Tyre
- 16″ OD x 4″ wide
- (400mm x 100mm wide)
- 1/2″ (12mm) thickness wheel

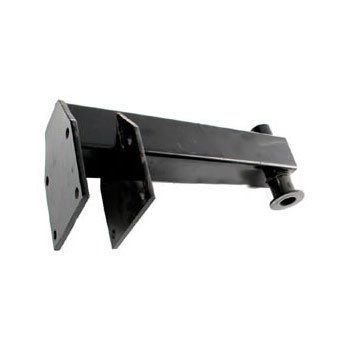

Mounting Arm and Tail Wheel Forks:
- ARM FOR B6556 TAIL WHEEL FORK
- Mounting Arm for B6422 & B6556 Tail Wheel Forks.

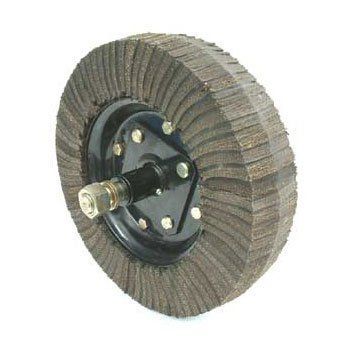

Segmented Rubber Wheel Assembly:
- RUBBER WHEEL 400mm × 100mm and HUB/AXLE
- 400mm diameter x 100mm wide
- Supplied complete with Hub & 1″ diameter axle with hexagon bolt head
- Taper Roller Bearing Hub (B6600) can be fitted to this wheel
- Rim will bolt directly to machines with Cast Iron Bearing Hubs: (Howard, Bush Hog etc.)

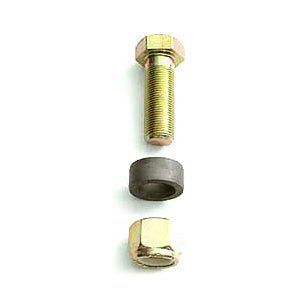

Slasher Blade Bolt Kits– To Suit (10mm) Thick Blades with 32mm Hole:
Slasher Blade Bolt Kits– To Suit 1/2″ (12.7mm) Thick Blades with 32mm Hole:

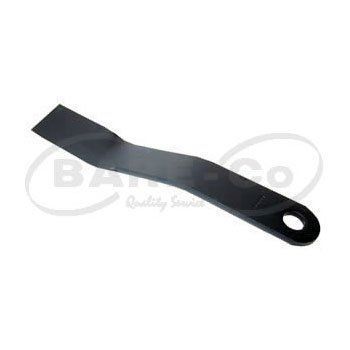

Slasher Blades:
