Hydraulics on the Mid North Coast

Hydraulics That Power Your Productivity

When your hydraulic system isn’t running right, your whole operation feels it. At Wingham Farm Machinery, we specialise in hydraulic repairs, maintenance, and custom setups for farmers and agricultural businesses across Wingham and the Mid North Coast. From small leaks to complete system failures, we get straight to the problem and fix it fast—so you can keep moving.


Our experienced team works with all types of farm machinery, using trusted components and modern diagnostic tools to ensure lasting performance. Whether it’s a hose replacement, pump rebuild or complete overhaul, we’ll tailor the solution to suit your setup. Pick up and delivery is available, making it easier to get your gear back in action without delays.


Call us today on (02) 6553 5729 to book your hydraulic service or repair.

Contact Us

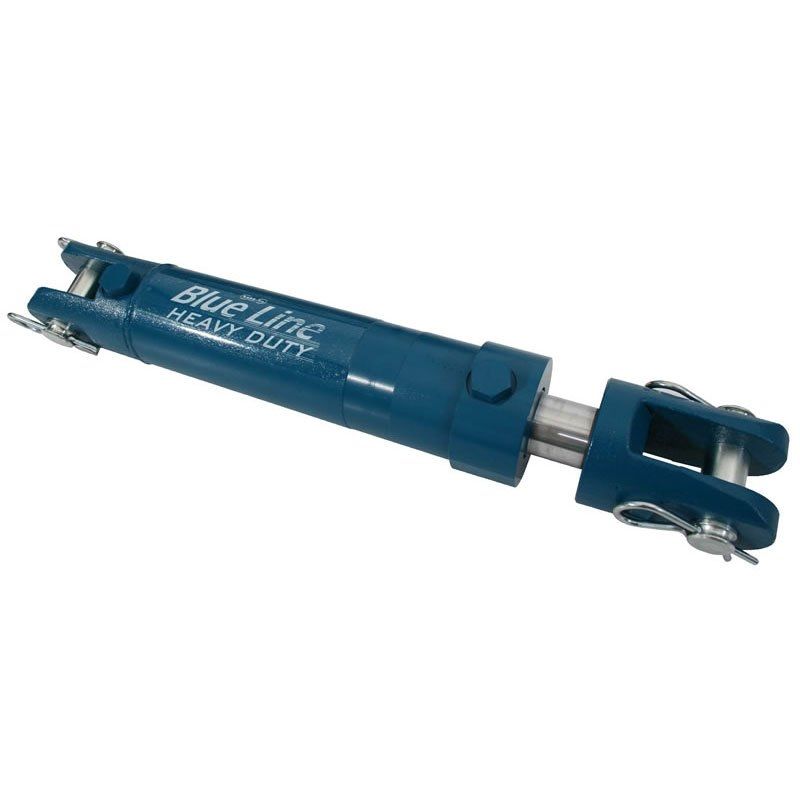

A Blue Hydraulic Cylinder With a Clevis on a White Background — Wingham Farm Machinery in Wingham, NSW

Hydraulics

A Blue Hydraulic Cylinder With a Clevis on a White Background — Wingham Farm Machinery in Wingham, NSW
  • Blue Line Heavy Duty Hydraulic Cylinders
  • Rated Working Pressure – 3,000 PSI (20,685 KPA)


Blue Line Heavy Duty Hydraulic Cylinders – Sizes

Bore Stroke Shaft Diameter Close Length
6" 18 ¼”
8" 20 ¼”
2 1/12 12" 24 ¼”
18" 30 ¼”
24" 1 ½” 36 ¼”
8" 20 ¼”
12" 24 ¼”
3" 16" 28 ¼”
18" 30 ¼”
24" 36 ¼”
8" 1 ¾” 20 ¼”
3 ½” 16" 28 ¼”
24" 36 ¼”
8" 2” 20 ¼”
4" 12" 2" 24 ¼”
4" 18" 30 ¼”
24" 36 ¼”

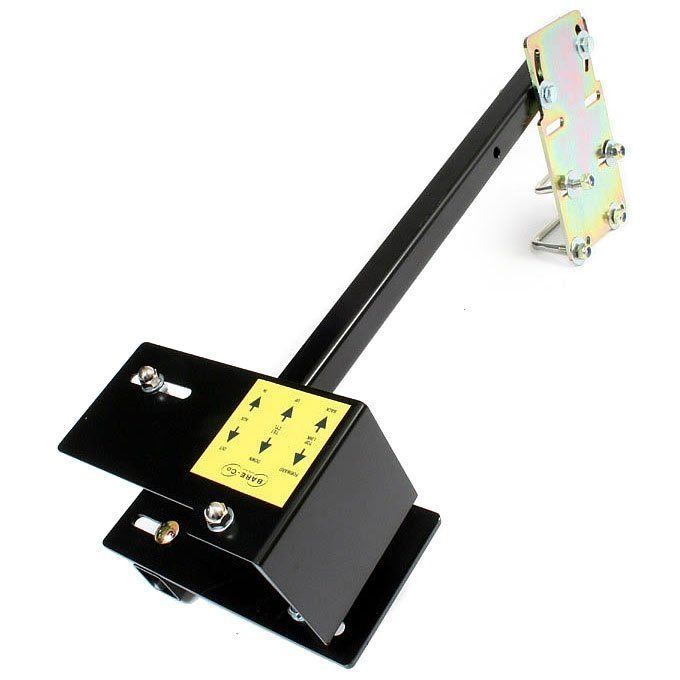

A Black Item With a Yellow Sticker That Says ' a ' on It — Wingham Farm Machinery in Wingham, NSW

Control Valve Mounting Arm:


  • Mounting Kit= 2&3SPOOL CONT VLV
  • Universal design
  • Mounts to most tractor ROP frames
  • Convenient valve position for operator
  • Accepts 2 or 3 spool valves
  • NOTE: Parts shown are BARE-Co parts – original part numbers are shown for reference only

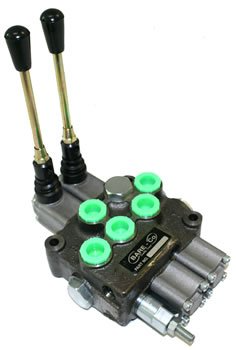

A Hydraulic Valve With Two Handles on a White Background — Wingham Farm Machinery in Wingham, NSW

Double Spool: One Double Acting – One Single Acting:


  • SIN/DBL ACT 2SPOOL VLV 45L/12G PER MIN
  • Open Centre
  • Adaptable to Closed Centre
  • 2 US Gal/min–45 Litres/min
  • Fully adjustable relief valves pre-set at 2000 P.S.I.
  • Dual location (side & top) Supply & Return ports
  • Blanking plugs supplied for alternate Supply/Return ports
  • All ports standard 3/4″ UN “O” Ring
  • Vertical or horizontal handle mounting
  • For Closed Centre applications order B8476 Power Beyond – Closed Centre Kit & adjust the relief valve in the Control Valve so that it is above pump pressure
  • See TECHNICAL INFO for explanation of Closed/Open Centre & Power Beyond terms
  • NOTE: Parts shown are BARE-Co parts – original part numbers are shown for reference only

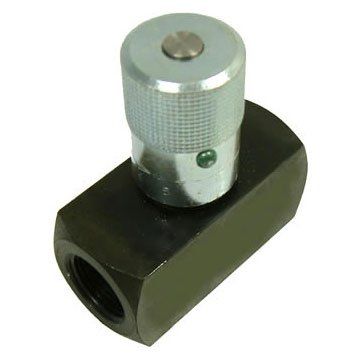

A Close Up of a Hydraulic Valve With a Handle on a White Background — Wingham Farm Machinery in Wingham, NSW

Flow Control Valve – 1/2″ NPTF Ports:


  • NEEDLE/VLV 1/2″NPT F/M THREADS
  • Description
  • NOTE: Parts shown are Bare Co parts – original part numbers are shown for reference only
  • B9409 Flow Control Valve 1/2″ NPTF Ports

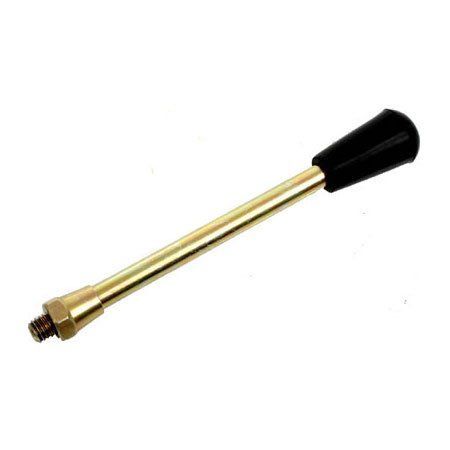

A Brass Rod With a Black Handle on a White Background — Wingham Farm Machinery in Wingham, NSW

Handle:


  • HANDLE FOR B8472/3/4/5 VALVE
  • To suit: 12 Gal/45 litre VALVES

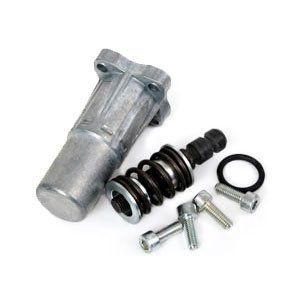

A Metal Cylinder With a Spring and Screws on a White Background — Wingham Farm Machinery in Wingham, NSW

Handle Detent Kit:


  • HANDLE DETENT= B8472/3/4/5VALVE
  • 12 Gal/45 litre VALVES
  • Allows handle to remain in any of 2 positions

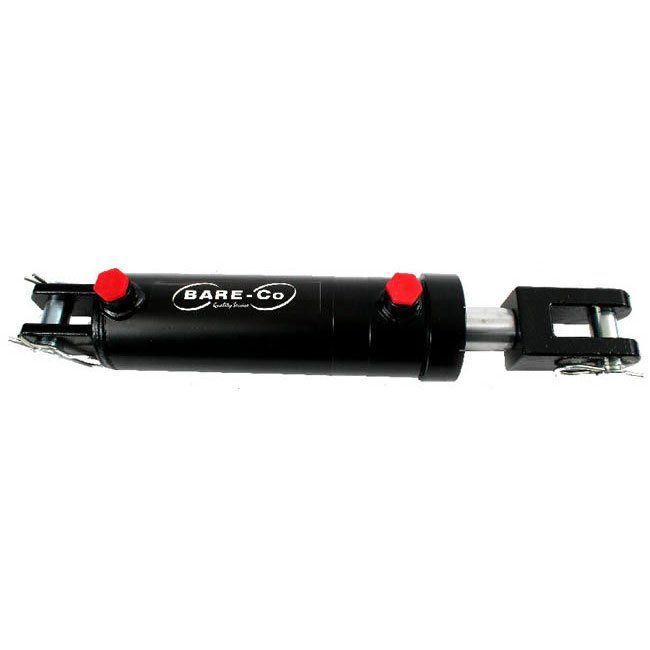

A Black Hydraulic Cylinder With Red Valves on a White Background — Wingham Farm Machinery in Wingham, NSW

Heavy-Duty High-Pressure Cylinders with Hard Chromium Plated Piston Rod


  • Welded Cylinders with ASAE Type Clevis Ends
  • Rated Working Pressure 3000 PSI (20,685 kPa)
  • Replaces ASAE low pressure Tie Rod Cylinders shown below


Heavy-Duty High-Pressure Cylinders with Hard Chromium Plated Piston Rod – Sizes

Bore Stroke Shaft Diameter Closed Length
1.5" 4" 7/8" 14 ¼”
1.5" 6" 7/8" 16 ¼”
8" 20 ¼”
10” 20 ¼”
12” 22 ¼”
14” 1 ¼” 24 ¼”
18” 28 ¼”
24” 34 ¼”
48” 58 ¼”
6” 16 ¼”
8” 20 ¼”
2 ½” 12” 1 ¾” 24 ¼” Long body
18” 30 ¼” Long body
24” 36 ¼” Long body
8” 1 ½” 20 ¼”
12” 22 ¼”
12” 24 ¼” Long body
3” 16” 28 ¼”
18” 30 ¼ Long body
24” 36 ¼” Long body
8” 20 ¼”
4” 12” 2” 22 ¼”
4” 18” “ 28 ¼”
24” 34 ¼”
A Blue Hydraulic Cylinder With a Clevis on a White Background — Wingham Farm Machinery in Wingham, NSW

Hydraulic Cylinder 2 1/2” Bore 24” Stroke Heavy Duty Blue line:


  • Bare Co Blue Line Heavy Duty Hydraulic Cylinder 2 1/2” Bore 24” Stroke
A Blue Hydraulic Cylinder With a Clevis on a White Background — Wingham Farm Machinery in Wingham, NSW

Hydraulic Cylinder 3” Bore 18” Stroke Heavy Duty Blue Line

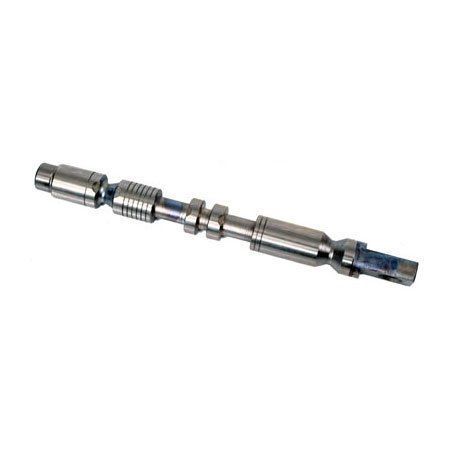

A Close Up of a Stainless Steel Shaft on a White Background — Wingham Farm Machinery in Wingham, NSW

Hydraulic Motor Control Spool:


  • 12 Gal/45 litre VALVES

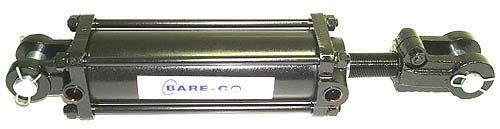

A Close Up of a Hydraulic Cylinder on a White Surface — Wingham Farm Machinery in Wingham, NSW

Hydraulic Tie Rod Cylinder 3” Bore 16” Stroke:

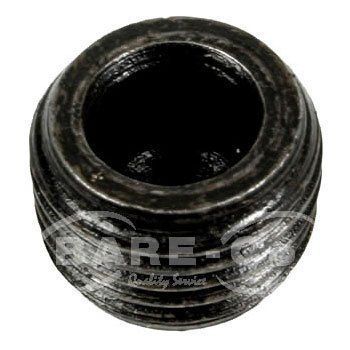

A Close Up of a Black Metal Object With a Hole in the Middle on a White Background — Wingham Farm Machinery in Wingham, NSW

Power Beyond/Closed Centre Adaptor:


  • 12 Gal/45 litre VALVES

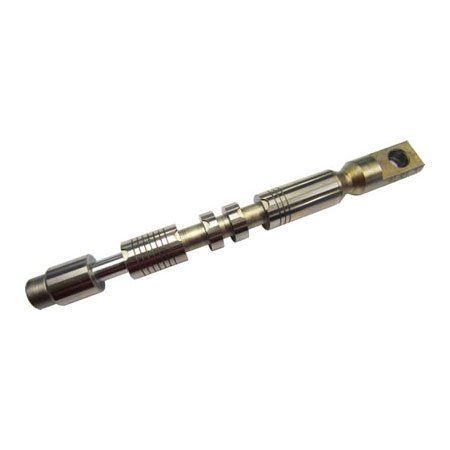

A Metal Shaft With a Hole in the Middle on a White Background — Wingham Farm Machinery in Wingham, NSW

Single Acting Spool:


  • 12 Gal/45 litre VALVES
A Hydraulic Valve With Two Handles on a White Background — Wingham Farm Machinery in Wingham, NSW

12 US Gal/min–45 Litres/min:


  • Fully adjustable relief valves pre-set at 2000 P.S.I.
  • Dual location (side and top) Supply & Return ports
  • Blanking plugs supplied for alternate Supply/Return ports
  • All ports standard 3/4″ UN “O” Ring
  • Vertical or horizontal handle mounting
  • For Closed Centre applications order B8476 Power Beyond – Closed Centre Kit & adjust the relief valve in the Control Valve so that it is above pump pressure
  • See TECHNICAL INFO for explanation of Closed/Open Centre & Power Beyond terms
  • NOTE: Parts shown are Bare Co parts – original part numbers are shown for reference only

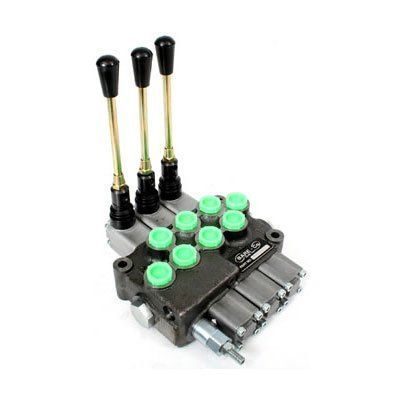

A Hydraulic Valve With Three Handles and Green Caps on a White Background — Wingham Farm Machinery in Wingham, NSW

Three Spool Double Acting Open Centre:


  • Adaptable to Closed Centre
  • 12 US Gal/min–45 Litres/min
  • Fully adjustable relief valves pre-set at 2000 P.S.I.
  • Dual location (side & top) Supply & Return ports
  • Blanking plugs supplied for alternate Supply/Return ports
  • All ports standard 3/4″ UN “O” Ring
  • Vertical or horizontal handle mounting
  • For Closed Centre applications order B8476 Power Beyond–Closed Centre Kit & adjust the relief valve in the Control Valve so that it is above pump pressure
  • See TECHNICAL INFO for explanation of Closed/Open Centre and Power Beyond terms
  • NOTE: Parts shown are Bare Co parts – original part numbers are shown for reference only

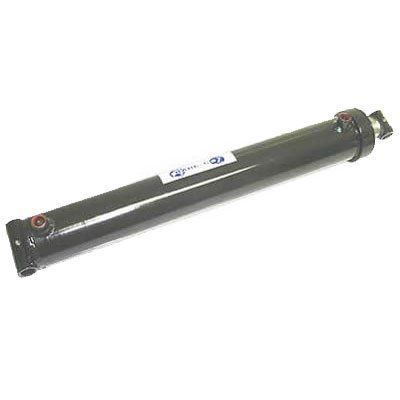

A Hydraulic Cylinder is Shown on a White Background — Wingham Farm Machinery in Wingham, NSW

Welded Cylinders with Tubular Pin Eyes:


  • Welded Type Cylinders with Industrial Type Pin Eyes
  • Rated Working Pressure 3000 PSI (20,685 kPa)


Welded Cylinders with Tubular Pin Eyes – Sizes

Bore Stroke Shaft Diameter Closed Length Port Size Eye Diameter Body End Rod End
2" 8” 1 ¼” 15” ¾” UNF ¾” 2 5/8” 1 ¾”
2 ½” 12" 1 ½” 20” ¾” UNF ¾” 3 1/8” 2”
2 ½” 18" 1 ½” 26” ¾” UNF ¾” 3 1/8” 2”
2 ½” 24" 1 ½” 32” ¾” UNF ¾” 3 1/8” 2”
3" 18" 1 ¾” 26” ¾” UNF 1” 3 5/8” 2 ¼”
3" 24" 1 ¾” 32” ¾” UNF 1” 3 5/8” 2 ¼”
3 ½” 24" 2” 32” ¾” UNF 1” 4 1/8” 2 ½”
4” 20" 2 ¼” 32” ¾” UNF 1 ¼” 4 ¾” 4”
A Black Box With a Yellow Label That Says ' a ' on It — Wingham Farm Machinery in Wingham, NSW

Built for Pressure, Backed by Experience

Hydraulics are the lifeblood of modern farm machinery—and when they fail, the downtime costs more than just time. That’s why we offer smart, efficient solutions that keep your equipment running strong.


Why trust us with your hydraulics?


  • Repairs & maintenance for all types of ag machinery
  • Custom hydraulic systems to match your operation
  • Quick turnarounds & responsive local service
  • Quality parts & fittings in stock for fast fixes
  • Backed by 100+ years of combined experience


Whether you're chasing better performance or fixing a fault, we’ll get your hydraulics sorted with precision and care.


Let’s get you back to work—efficiently. Get in touch today!

Get in Touch
